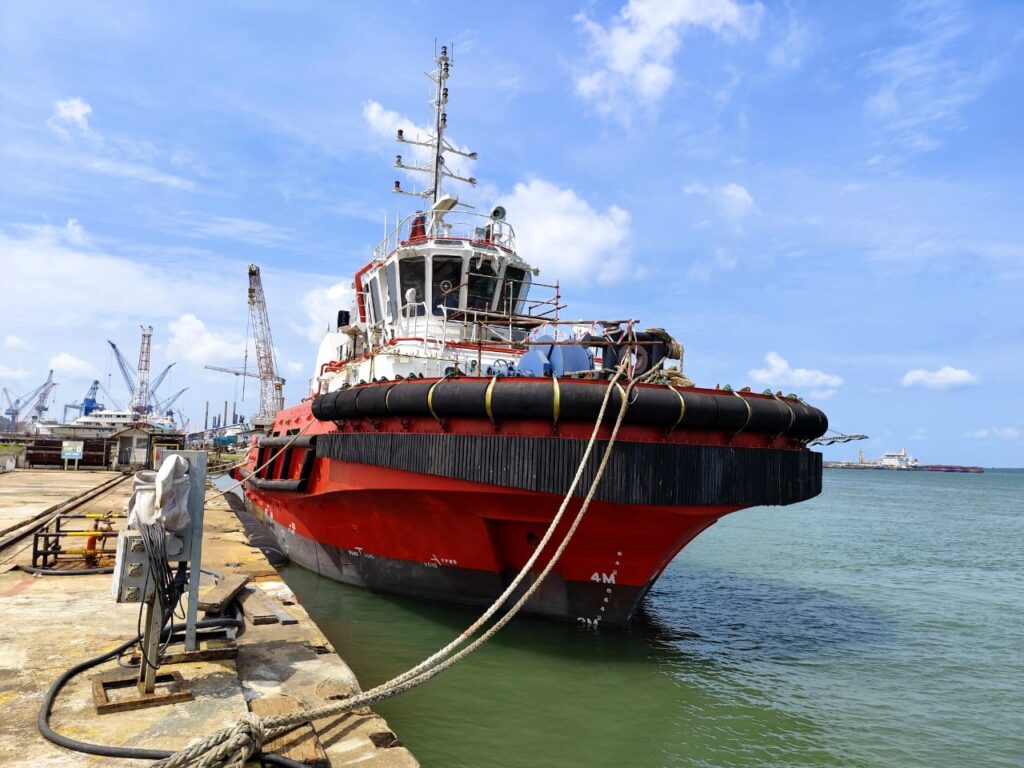

3400HP AZIMUTH STERN DRIVE (ASD) TUGBOAT
Compact, powerful, and designed for outstanding operational efficiency in push-pull, harbour assist, and escort towing.
Key features:
All welded steel construction vessel with twin diesel engines and twin Z-drive propellers in nozzle.
- Length Overall
- LBP
- Breadth Moulded
- Depth Moulded
- Design Draft
- Design Speed
- Complement
- Gross Tonnage
- Net Tonnage
- Deck Area
- 33.36 m
- 28.45 m
- 10.50 m
- 5.20 m
- 4.00 m
- 12 knots
- 10 person
- ~ 472 tonnes
- ~ 172 tonnes
- 100 m²
NOTATION: BV CLASS
I + Hull + Mach Tug, Tropical Zone – Temporary Unrestricted Navigation, Inwater Survey
MAIN ENGINE
YANMAR 6EY22AW
Output 2 x 1250kW 900RPM
IMO TIER-II COMPLIANCE
PROPULSION
SCHOTTEL SRP 340FP
4-BLADES Z-PELLER
AUXILIARY ENGINE
CATERPILLAR C7.1
Output 2 x 118eKw 1500RPM
CATERPILLAR C4.4 (HARBOUR)
Output 1 x 51eKw 1500RPM
BOLLAR PULL CAPACITY
AHEAD 45 TONNES
ASTERN 42 TONNES
TANK CAPACITY
- Marine Diesel Oil Tank
- Fresh Water Tank
- Water Ballast Tank
- Lube Oil Tank
- Foam Tank
- Oil Dispersant Tank
- Sludge/Dirty Oil Tank
- Bilge Holding Tank
- 118.0 mᶟ
- 40.8 mᶟ
- 136.6 mᶟ
- 13.0 mᶟ
- 8.2 mᶟ
- 8.5 mᶟ
- 6.0 mᶟ
- 6.0 mᶟ
EXTERNAL FIRE FIGHTING
Delta Fifi 1/2 class FIFI w/ Water Curtain System
2 x 700 mᶟ/hr pump, 2 x 600mᶟ/hr fire monitor
DECK MACHINERY
- Hydraulic Windlass - Athira 40 kN, double gypsy for 22mm Chain Dia
- Deck Crane - Athira Foldable Boom Crane 50 kN @ 5 mtr and 20 kN @ 9 mtr
- Capstan - Athira Hydraulic Vertical Capstan 50 kN speed 10-15 mtr/min
- Anchor 2 x 660 Kg Stockless Bower Anchor
- Chain cable 2 x 22mm (total 302.5 meter)
- Towing Line 3 x 120 mtr Polypropylene Rope, Min Breaking Strength 59 kN
NAVIGATION
GMDSS A1 +A2

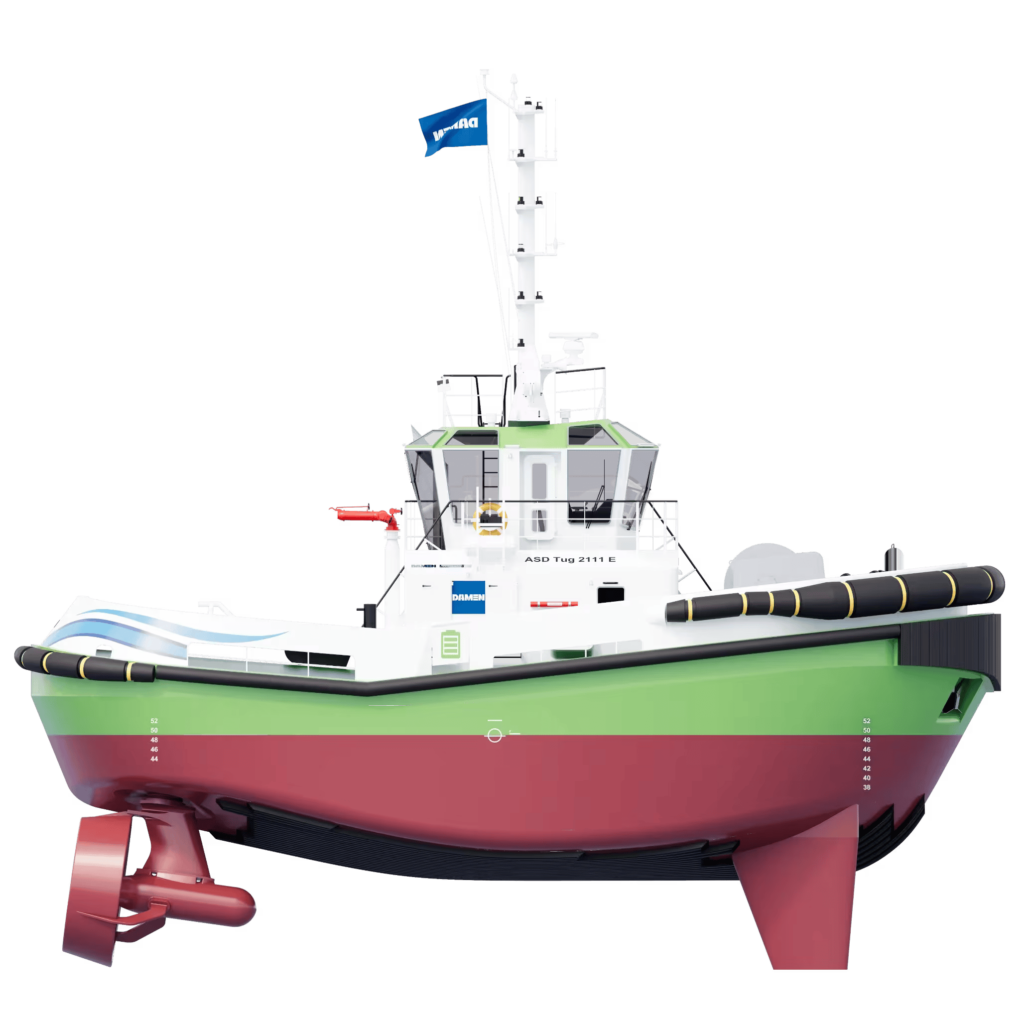

AZIMUTH STERN DRIVE TUG 2111 E
GENERAL
- Basic functions
- Classification
- Painting
- Towing, mooring, Ø oil pollution control and Ø fire-fighting operations
-
Bureau Veritas I HULL
MACH Escort Tug (Bollard pull = 70 t) Unrestricted Navigation AUT UMS INWATER SURVEY COMF-NOISE 3, COMFVIB 3, ELECTRIC HYBRID (PM,ZE), BATTERY SYSTEM Ø Green Passport EU Ø Lloyd’s Register notation
- Epoxy paint system
DIMENSIONS
- Length overall
- Beam overall
- Depth at sides
-
Draught aft (approx.)
(98% consumables, without deck load and Ø)
- 21.02 m
- 10.81 m
- 4.12 m
- 5.25 m
TANK CAPACITIES
- Fuel oil
- Fresh water
- Sewage
- Bilge water
- Ø Foam
- Ø Dispersant
- Urea
- 11.1 mᶟ
- 6.9 mᶟ
- 3.5 mᶟ
- 1.5 mᶟ
- 3.5 mᶟ
- 1.8 mᶟ
- 0.7 mᶟ
PERFORMANCES
- Bollard pull ahead *
- Bollard pull astern *
- Speed *
- Bollard pull ahead **
- Bollard pull astern **
- Speed **
- 70.0 t
- 65.1 t
- 12.0 kn
- 20.0 t
- 17.0 t
- 10.0 kn
*Specified performances in full electric mode (battery powered)
** Specified performances in generator mode
PROPULSION SYSTEM
- Main engines (electric)
- Total power
- Battery capacity
- Propeller diameter
- Forced ventilation
- Gas exhaust emission
- 2x POD incl. electric motor
- Approx. 4394 kW (5974 bhp) at 1280 rpm
- Approx. 4820 kWh
- 2800 mm
- t.b.d m3 /h
- A Damen SCR system is installed for the backup generator engine, IMO Tier III compliant
AUXILIARY EQUIPMENT
- Generator set
- Bilge pump
- General service pumps
- Fuel oil pump
- Fuel oil filters
- Fuel oil purifier
- Cooling system
- Fresh water pressure set
- Sewage pump
- Hydraulic system
- Ø Oil pollution control
- Ø Fifi pump
- Ø Fifi monitor
- 1x Caterpillar C32, 1140 kVA, 690 V, 60 Hz
- Azcue CA-32/05 up to 10.0 m3 /h
- 2x Azcue CA-50/3B up to 27.0 m3 /h
- Azcue MR-41/10 up to 12.0 m3 /h
- Coalester filters incl. water separator
- CJC PTU3 27/81 MZ-E2PWZ, 1920 l/h
- Keel cooling
- Euroinox 40/50T
- Distrimex B40 6.6 m³/h
- Electrically driven pump(s)
- Dispersant pumpset with two spraybooms
- Generator engine driven pump 1200 m³/h Ø with water spray
- 1x 1200 m³/h water/foam
DECK LAY-OUT
- Anchor
- Anchor winch
- Towing winch
- Ø Towing pins
- Ø Towing hook fore
- Ø Capstan aft deck
- Ø Towing hook aft
- Ø Capstan fore deck
- Ø Crane
- Fendering
- 1x 270 kg + Ø 1x 270 kg Pool (High Holding Power)
- 1x Electrically driven 10 m/min + Ø 1x Electrically driven 10 m/min
- Hydraulically driven double drum, pull up to 35 ton and speed up to 40 m/min on second layer, brake holding force 175 ton
- 2x hydraulically driven SWL 12 ton
- Mampaey SWL 860 kN / 86 ton
- Electrically driven, 5 ton at 15 m/min
- Mampaey SWL 860 kN / 86 ton
- Electrically driven, 5 ton at 15 m/min
- HS Marine AK16 HE3 0.84 ton at 11.15 m HS Marine AK28/10.3 E3 1.7 ton at 10.30 m + winch 2150 kg
- Cylindrical rubber bow fender above fender, rubber fender at sides, cylindrical fender aft, Ø tyre fendering
ACCOMMODATION
For 3, Ø 4, Ø 5 or Ø 6 persons, completely insulated and finished with durable modern linings, acoustical ceiling in the wheelhouse and floating floors. Air-conditioned accommodation with three crew cabins and galley/ mess at accommodation deck.
NAUTICAL AND COMMUNICATION EQUIPMENT
- Searchlight
- Radar system
- Electronic chart system
- Ø ECDIS
- Compass
- Satellite compass/GPS
- Autopilot
- Echosounder
- CCTV
- VHF radio telephone
- VHF portable (GMDSS)
- Ø SSB
- Ø Inmarsat + Ø spare
- Navtex
- AIS
- EPIRB
- SART
- Ø VDR
- Remote monitoring
- Anemometer
- 1x LED DHR 320RCP22+ Ø 1x LED DHR 320RCP22
- 1x Furuno FAR 1518-BB + Ø 1x Furuno FAR 1518-BB
- MaxSea TZ Professional
- Furuno FMD-3200
- Cassens & Plath Reflecta 11
- JRC JLR 21
- Simrad AP-70
- Furuno FCV-600 or Ø Furuno FE-800 (MED)
- 1 camera or Ø 5 cameras
- 2x Cobham Sailor 7222 (one with DSC) + Ø 1x Cobham Sailor 6215
- 2x Sailor SP3540
- Cobham Sailor 6310
- Furuno Felcom 18
- Furuno NX-900
- Furuno FA-170
- Jotron Tron-60S
- McMurdo AIS SART S5
- Furuno VR-7000
- Ready for Damen Triton
- Gill Instruments GMX500 Ø = Optional equipment
